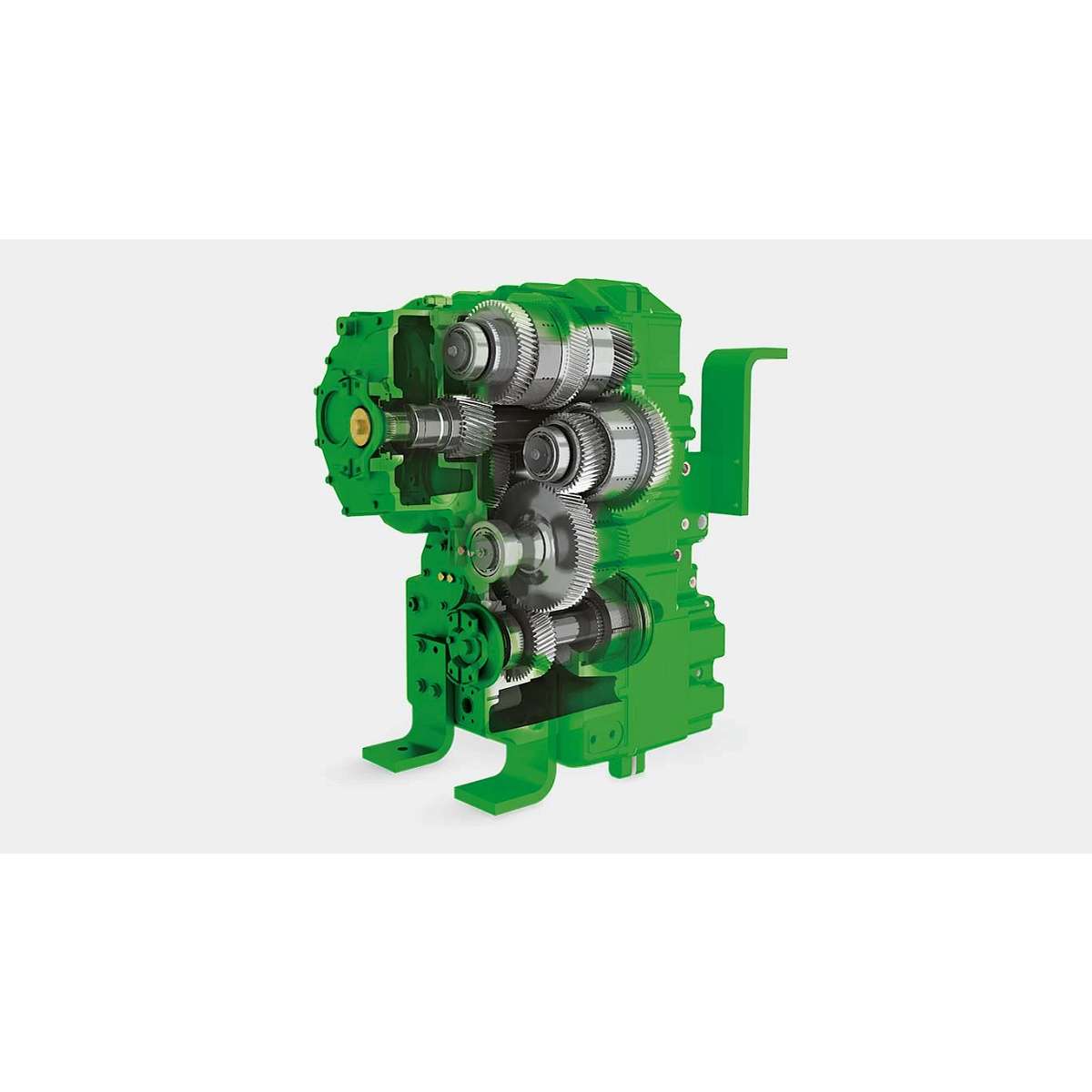

9R Transmission

John Deere 9R 590 Tractor available through IPSO

Overview:

  • Maximum engine power 649 hp (477 kW) (ECE-R120)
  • 13.6L 6-cylinder engine
  • Weight and wheelbase: 20.9 t and 3.912 m
  • Optional HydraCushion front-axle suspension and ActiveSeat™ II for premium ride comfort

Experience the 9R 590 mega power at its most versatile. This robust all-rounder is available with maximum power of up to 649 hp. The JD14 engine with 13.6 l boasts steadfast reliability and improved fuel efficiency, and the 9R puts all that power straight to the ground.

See product specifications See product brochure

Why 9R 590?

Efficient Power And Transfer

Benefit from the total reliability and excellent fuel economy of our 13.6 l JD14 engine and effectively manage its huge power reserves and up to 2954 Nm torque with the e18™ transmission.

9R Series tractor pulling a tillage implement in a field

9 Series Cab – Your Favourite Place

Enjoy an outstanding cab featuring the G5ᴾˡᵘˢ CommandCenter™ and numerous comfort features such as a 6.5” digital touchscreen radio with Apple CarPlay & Android Auto integration, a 6.1 sound system and the optional ActiveSeat™ II with seat ventilation and massage function

Interior of the cab on a 9R Series Tractor

Next-Level Automation

Achieve unprecedented levels of productivity from our in-base AutoTrac, Variable Rate Application, Section Control, and advanced licences like AutoTrac™ Turn Automation, AutoTrac™ Implement Guidance Passive, AutoPath™, MachineSync, and In-Field Data Sharing.

Left side view of 9R Series Tractor in the field

Technical Specifications

Key Features
Pump Rated Output
Standard: 208 L/min 55 gpm Optional: 416 L/min 110 gpm
Base Machine Weight
18482 kg
Engine Model
JD14
Displacement
827 see you in
Rated Engine Power
582 hp
Rated Engine Power
590 PS
Maximum Engine Power
477 kW
Rear Hitch Category (SAE Designation)
Category 4N/4
Base Machine Weight
40660 lb
Engine Make
John Deere JD14 engine (B20 diesel compatible)
Engine Family
MJDXL13.5334
Displacement
13.6 L
Rated Engine Power
434 kW
Maximum Engine Power
640 hp
Maximum Engine Power
649 PS
Transmission Type
John Deere e18™ 18-speed PowerShift™ with Efficiency Manager: 40 km/h (25 mph)
Rear Axle (3) ▾
Rear Axle Type
Diameter: 120 x 3048 mm 4.72 x 120 in.
Final Drive
Inboard planetary with double-reduction axle
Rear Differential Lock
Full-locking electrohydraulic
Rear Power Take-Off (PTO) (6) ▾
Leave category
Independent, 44 mm (1.75 in.) 20-spline, 1000 rpm
Rated PTO Power
249 kW
Engagement Method
Electrohydraulic
Rated PTO Power
335 hp
Rated PTO Power
340 PS
Number of Splines
20
Hydraulics (5) ▾
Hydraulic System Type
Closed-centre, pressure-and-flow compensated
Number of Rear Selective Control Valves (SCVs)
Four to six factory or field installed
SCV Control
Electronic
Pump Rated Output
Standard: 208 L/min 55 gpm Optional: 416 L/min 110 gpm
Available Flow at a Single Rear SCV
1.3-cm (1/2-in.) couplers: 132 L/min 35 gpm 1.9-cm (3/4-in.) couplers: 172 L/min 45 gpm
Dimensions & Weights (10) ▾
Wheelbase
154 in
Base Machine Weight
40660 lb
Overall Length
312.8 in
Drawbar Ground Clearance
20.7 in
Maximum Ballast Level
67000 lb
Wheelbase
3912 mm
Base Machine Weight
18482 kg
Overall Length
7945 mm
Drawbar Ground Clearance
527 mm
Maximum Ballast Level
30391 kg
Engine (25) ▾
Engine Make
John Deere JD14 engine (B20 diesel compatible)
Engine Family
MJDXL13.5334
Displacement
827 see you in
Aspiration
Dual series turbocharger with fixed geometry first stage and variable geometry second stage - air-to-air aftercooling
Cylinder Liners
Wet-liner
Rated Engine Speed
2100 rpm
Rated Engine Power
434 kW
Engine Torque at Rated Speed
2008 lb-ft
Maximum Engine Power
640 hp
Maximum Engine Power
649 PS
Alternative Fuel Type
B30 Diesel Compatible
Fuel type
Diesel
Torque Rise
38 %
Engine Model
JD14
Emissions Certifications
Stage II, Stage IIIA, Stage V
Displacement
13.6 L
Number of Cylinders
6
Aftertreatment Type
Diesel oxidation catalyst (DOC)/diesel particulate filter (DPF)/selective catalytic reduction (SCR)
Rated Engine Power
582 hp
Rated Engine Power
590 PS
Engine Torque at Rated Speed
2723 Nothing much
Maximum Engine Power
477 kW
Maximum Engine Torque
At 1550 rpm: 2723 Nm 2008 lb-ft
Power Bulge
10 %
Alternative Fuel Type
B20 diesel compatible
Electrical System (5) ▾
Battery Voltage
12 V
Alternator output
Standard: 250 amp Optional: 330 amp
Driving Lights
Halogen, 65 W; Optional: LED
Battery Cold Cranking Amps
2850 CCA
Working Lights
Standard: 20 halogen; Optional: 20 or 24 LED
Rear Hitch (3) ▾
Rear Hitch Category (SAE Designation)
Category 4N/4
Sensing Type
Electrohydraulic with draft sensing
Maximum Lift Capacity Directly at Coupling Points
20.000
Operator Station (10) ▾
Seat Suspension
Standard: air suspension Optional: ActiveSeat™ II
Degree of Seat Swivel, Right Hand
40 degree
Primary Display
Standard: G5
Cabin volume
115 cu ft
Cab Glass Area
71.47 sq ft
Degree of Seat Swivel, Left Hand
8 degree
Instructional Seat
Standard
Radio
Standard: AM/FM, remote control, auxiliary input jack, four speakers, and external aerial Optional: Touchscreen radio with smartphone interface and voice recognition, Digital Radio (DAB+) with Radio Data System (RDS), auxiliary input jack, USB audio & video input, and Bluetooth microphone, six-speaker system (four speakers and two tweeters) and one subwoofer
Cabin volume
3.27 m³
Cab Glass Area
6.64 m²
Capacities (10) ▾
Fuel Tank Capacity
400 lass
Diesel Exhaust Fluid (DEF) Tank Capacity
31.7 lass
Cooling System Capacity
14.9 lass
Transmission - Hydraulic System
With 3-point hitch and PTO: 60 Without 3-point hitch and PTO: 58 lass
Crankcase oil capacity
16.9 lass
Fuel Tank Capacity
1490 L
Diesel Exhaust Fluid (DEF) Tank Capacity
120 L
Cooling System Capacity
56.5 L
Transmission - Hydraulic System
With 3-point linkage and PTO: 242 Without 3-point linkage and PTO: 235 L
Crankcase oil capacity
64 L
Transmission (2) ▾
Transmission Type
John Deere e18™ 18-speed PowerShift™ with Efficiency Manager: 40 km/h (25 mph)
Maximum Speed Forward
40 km/h 25 mph
Front Axle (2) ▾
Front Axle Type
Diameter: 120 x 3048 mm (4.72 x 120 in.)
Front Axle Differential Lock
Full-locking electrohydraulic
Steering & Brakes (1) ▾
Steering Type
Hydraulic power steering; Optional: ActiveCommand Steering (ACS™)
Technology Integration (3) ▾
Guidance
Integrated StarFire™ Receiver with AutoTrac™ Activation, Section Control, Variable Rate, Documentation, Data Sync, Over-the-Air Updates, Remote Display Access
Remote Diagnostics
Available with activated JDLink hardware and activations
Connectivity
Available with JDLink™ hardware, activations, and Ethernet harnesses (availability dependent upon destination)
Drawbar (2) ▾
Drawbar Category
Category 5
Maximum Vertical Load
5440 kg 12,000 lb
Additional Information (2) ▾
Country of manufacture
USA
Date Collected
28 February 2024
Machine Configuration (2) ▾
Wheel or Track Configuration
Wheel
Drive Type
4WD
