John Deere 683R Front Loader available through IPSO

Overview:

  • Multiple Levelling Options
  • Unobstructed View
  • Safe, Easy Mounting
  • Effortless Locking

Easy to mount, quick to take off – it’s the key to higher productivity. The automatic latch design of John Deere R Series front loaders makes installing loader and implements as easy as click & go

Why 683R?

Dynamic Weighing System

This is time-saving accuracy: you’ll always know how much to bill and how much to load with instant precision. Without time-consuming tractor stops for each bucket, you can weigh anything on the go and eliminate needless additional trips from the feeder wagon to return excess material in the bucket.

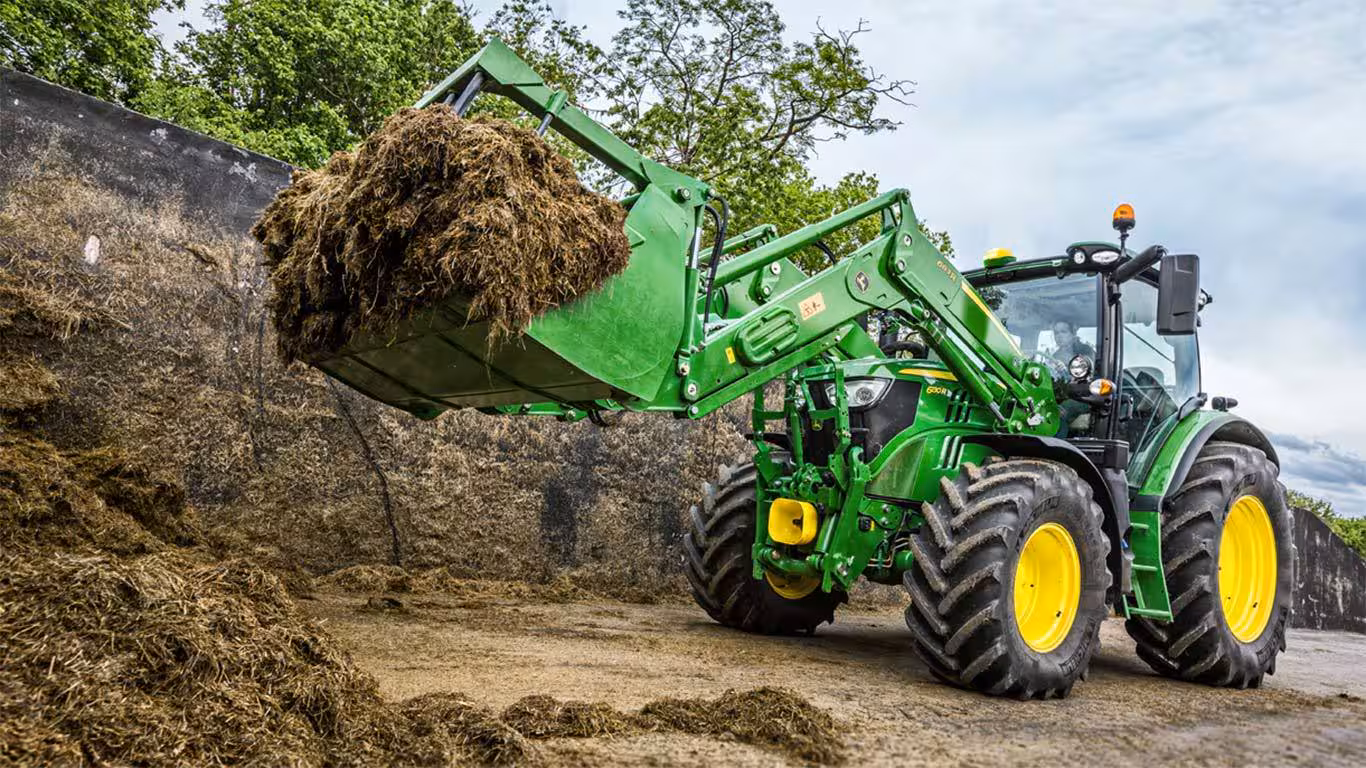

Front loader bucket filled with silage on a John Deere tractor during material handling work.

Return To Position

Automatically returns the loader to predefined boom and bucket positions – in conjunction with the reverser on the joystick, this is a genuine productivity boost.

John Deere tractor pushing into a silage pile with front loader bucket in farm environment.

Level To Horizon

This exclusive feature levels the attachment parallel to the ground, not only to the tractor. Transport bales faster, never spill or drop goods, and enjoy an overall smoother ride

Interior cab view of John Deere tractor showing operator controls and front loader operation.

Technical Specifications

Key Features
Lift Capacity At Full Height - Measured At Pivot (U)
2522 kg
Boom Breakout Force - Measured At Pivot (Y)
3435 kg
Bucket Rollback Force Capacity At Ground-Level Line (ZZ)
4421 kg
Maximum Lift Height (A)
4520 mm
Clearance At Full Height - Bucket Dumped
3480 mm
Tip Angle (E)
-56 degree
Lift Capacity At Full Height - Measured At Pivot (U)
5560 lb
Boom Breakout Force - Measured At Pivot (Y)
7573 lb
Bucket Rollback Force Capacity At Ground-Level Line (ZZ)
9747 lb
Maximum Lift Height (A)
178 in
Clearance At Full Height - Bucket Dumped
137 in
Rollback Angle (G)
53 degree
Technical Drawing (1) ▾
Technical Drawing
View diagram
Tractor (7) ▾
Model
6230/6250R
Rear tyre
650/85R38
Pump capacity
114 L/min
Rated Pressure
2900 PSI
Front Tyre
600/70R30
Wheelbase
2900 mm
Rated Pressure
200 bar
Loader (43) ▾
Levelling Configuration
Mechanical Self-Levelling (MSL)
Bucket Weight
355 kg
Lift Capacity At Full Height - Measured At Pivot (U)
2522 kg
Lift Capacity At Full Height - Measured At 800 mm Ahead Of Pivot
2538 kg
Lift Capacity At 59 in. (1500 mm) - Measured At Pivot
3041 kg
Lift Capacity At 59 in. (1500 mm) - Measured At 800 mm Ahead Of Pivot (X)
2870 kg
Boom Breakout Force - Measured At Pivot (Y)
3435 kg
Boom Breakout Force - Measured At 800 mm Ahead Of Pivot (Z)
3016 kg
At Maximum Height (VV)
2972 kg
At 59-in. (1500 mm) Lift Height (XX)
4464 kg
Bucket Rollback Force Capacity At Ground-Level Line (ZZ)
4421 kg
Maximum Lift Height (A)
4520 mm
At Full Height - Bucket Level (B)
4250 mm
Clearance At Full Height - Bucket Dumped
3480 mm
Overall Length (I+F)
5791 mm
Digging Depth (H)
-85 mm
Reach - At Maximum Height (D)
1215 mm
Reach - At Ground Level - Bucket Level
2891 mm
Tip Angle (E)
-56 degree
Tip Angle, Ground
-117 degree
Loader Lower
2.9 seconds
Bucket Rollback
1.8 seconds
Bucket Used
Heavy Duty 2450
Bucket Weight
783 lb
Lift Capacity At Full Height - Measured At Pivot (U)
5560 lb
Lift Capacity At Full Height - Measured At 800 mm Ahead Of Pivot
5595 lb
Lift Capacity At 59 in. (1500 mm) - Measured At Pivot
6704 lb
Lift Capacity At 59 in. (1500 mm) - Measured At 800 mm Ahead Of Pivot (X)
6327 lb
Boom Breakout Force - Measured At Pivot (Y)
7573 lb
Boom Breakout Force - Measured At 800 mm Ahead Of Pivot (Z)
6649 lb
At Maximum Height (VV)
6552 lb
At 59-in. (1500 mm) Lift Height (XX)
9841 lb
Bucket Rollback Force Capacity At Ground-Level Line (ZZ)
9747 lb
Maximum Lift Height (A)
178 in
At Full Height - Bucket Level (B)
167 in
Clearance At Full Height - Bucket Dumped
137 in
Overall Length (I+F)
228 in
Digging Depth (H)
-3 in
Reach - At Maximum Height (D)
48 in
Reach - At Ground Level - Bucket Level
114 in
Rollback Angle (G)
53 degree
Loader Raise
4.2 seconds
Bucket Dump
1.8 seconds
