300E

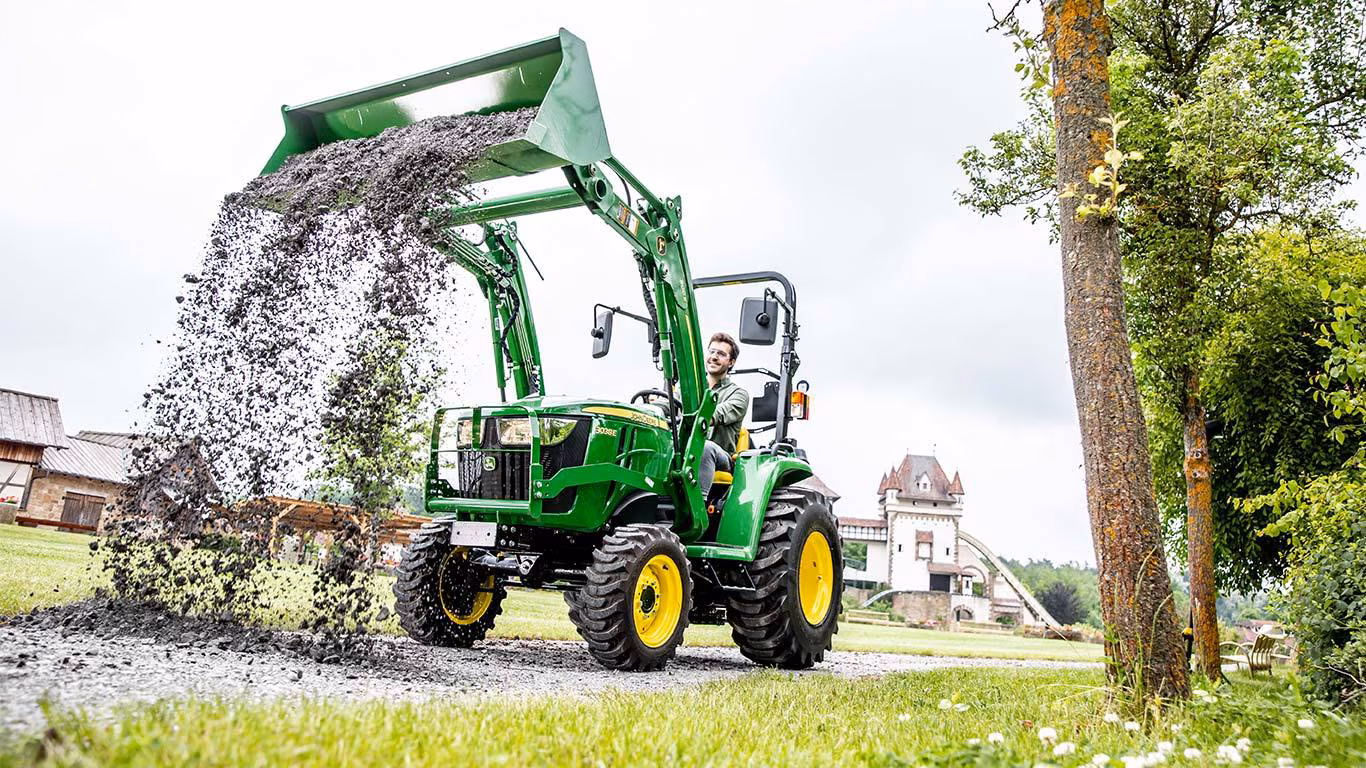

Compact tractor lifting and dumping gravel with a front loader on a grassy property, used for landscaping and light material work
1 / 1
Compact tractor lifting and dumping gravel with a front loader on a grassy property, used for landscaping and light material work

John Deere 300E Front Loader available through IPSO

Overview:

  • Fixed Mounted Loader
  • Mechanical Self-Levelling (MSL) Option
  • Lift Capacity At Full Height, Measured At Pivot: n539 kg (NSL)n486 kg (MSL)
  • Compatible With 3025E, 3038E

The E Series are fixed mounted loaders which are a great choice if your loader never leaves the tractor.

See product specifications See product brochure

Why 300E?

Fixed Frontloader

John Deere loaders are perfectly matched with John Deere tractors to help you turn productivity up a few notches. Mounting of implements is safe and easy at any time.

Field, E Series Loader, Fixed Frontloader, 300E, 400E, Tractors 3E Series, 3038E Tractor, Loaders 300E

Designed to work perfectly

Curved boom design improves operator visibility to front implements

Field, Tractors 3E Series, 300E Loader Attachments

Mechanical Self-Levelling

The 300E loader has the option of mechanical self-levelling where the implement will keep your set angle during lifting and lowering. The loader implement will maintain position wherever the loader is lifted to.

Field, Tractors 3E Series loader attachment

Technical Specifications

Key Features
Boom Breakout Force - Measured At Pivot (Y)
775 kg
Maximum Lift Height (A)
84 in
Lift Capacity At Full Height - Measured At Pivot (U)
1186 lb
Lift Capacity At Full Height - Measured At Pivot (U)
539 kg
Boom Breakout Force - Measured At Pivot (Y)
1704 lb
Maximum Lift Height (A)
2140 mm
Loader (14) ▾
Boom Breakout Force - Measured At Pivot (Y)
775 kg
Base Weight
1550 lb
Digging Depth (H)
5 in
Reach - At Maximum Height (D)
603 mm
Lift Capacity At Full Height - Measured At Pivot (U)
1186 lb
Reach - At Ground Level - Bucket Level
54 in
Maximum Lift Height (A)
2140 mm
Lift Capacity At Full Height - Measured At Pivot (U)
539 kg
Reach - At Ground Level - Bucket Level
1369 mm
Maximum Lift Height (A)
84 in
Boom Breakout Force - Measured At Pivot (Y)
1704 lb
Levelling Configuration
Mechanical Self-Levelling (MSL)
Digging Depth (H)
131 mm
Reach - At Maximum Height (D)
24 in
Tractor (1) ▾
Front Tyre
25 × 8.50-14 4PR R4

Want to find out more about John Deere 300E front loader?
