John Deere 9 Series tractors are built to exceed any expectations you might have of a machine with this level of power. With the 9 Series, you'll cover more acres, achieve unrivalled efficiency and enjoy more comfort than any other model. Embrace exceptional performance and take your business to the next level!
The 9 Series gives you fuel-efficient John Deere engines, a luxurious cab and advanced precision farming features like AutoSetup, which lets you start work faster with a single click and finish it more efficiently than ever.


The 9RX 710, 770 and 830 are the most powerful production tractors in the world. They give you exceptional traction performance, industry-leading precision farming capabilities and the visionary comfort of the John Deere cab. Embrace the power of the 9RX Series and take your farming to a new level of ruggedness and efficiency.

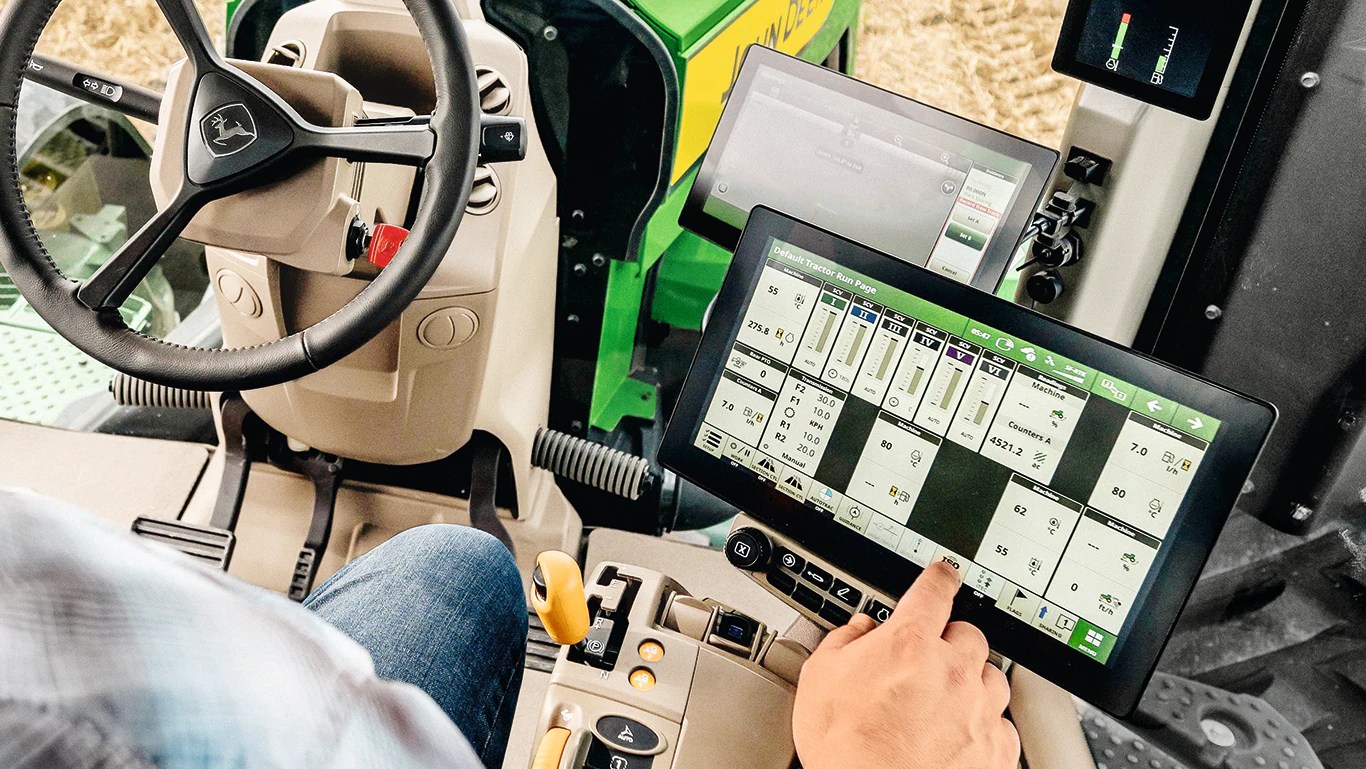

The new G5 displayMore is the largest screen ever created by John Deere. You've got more room for important information, a faster processor for fast start-up times and high-definition clarity.
The greatest value, however, comes from the full integration of precision farming and standard features such as section control and variable rate application. These are everything you need to be ready for the farming of the future.




The 9RX 640 took up the challenge in July 2023: in just 24 hours, towing a 9 m cultivator, it set a new record by working 769.40 ha with a remarkable fuel consumption of just 3.1 l/ha (source: Profi 09.2023).
With a massive power output of up to 913bhp, the 9RX 710, 770 and 830 models offer impressive power. The DEF-free JD18 engine, new e21 PST transmission and redesigned drivetrains give you exceptional traction and unrivalled efficiency.




Available with up to 691 hp, the 9R offers maximum performance and excellent stability. The optional HydraCushion™ front axle suspension significantly reduces vibration and the spacious, well-equipped cab turns long working days into comfortable hours.

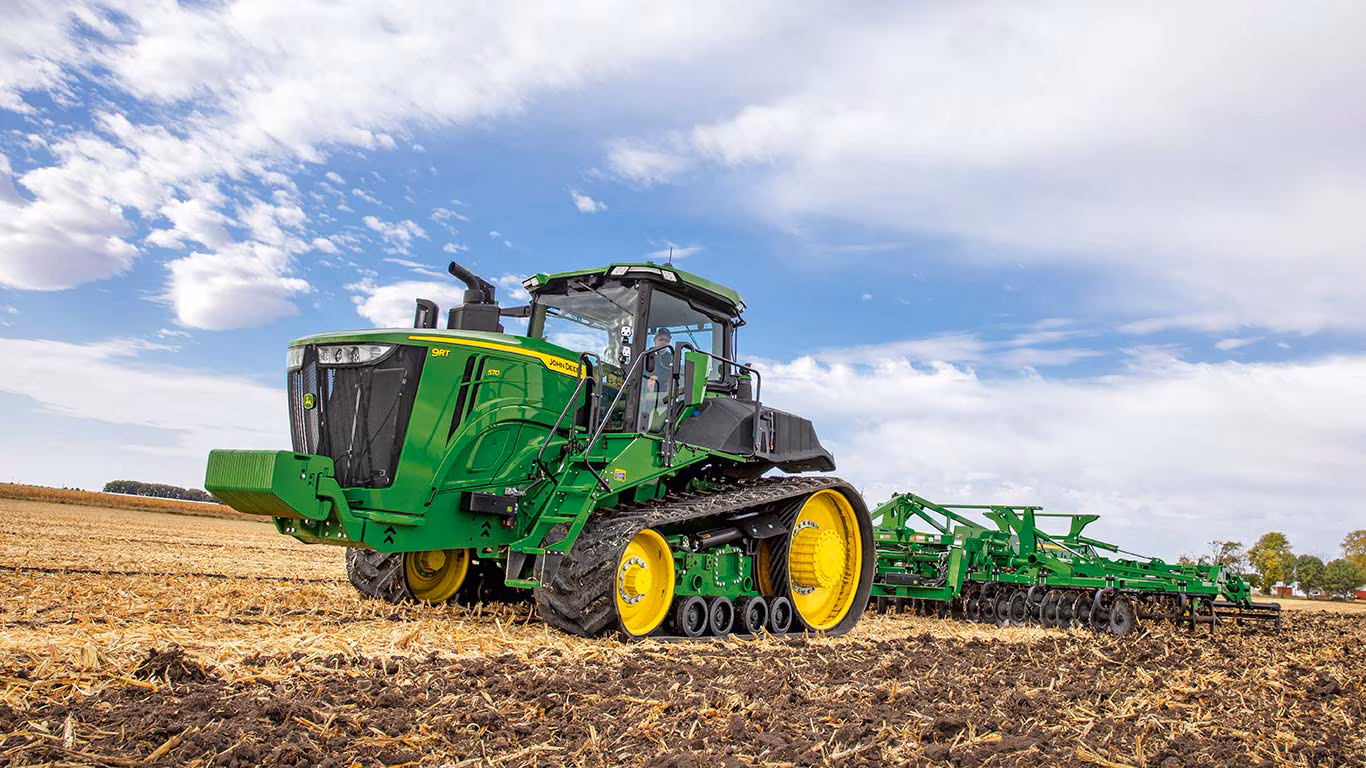

The 9RT is ideal for straight-line traction on terrain with light soil, low side slopes and generous hills. AirCushion™ suspension ensures a smooth ride and exceptional comfort, unique in its class.

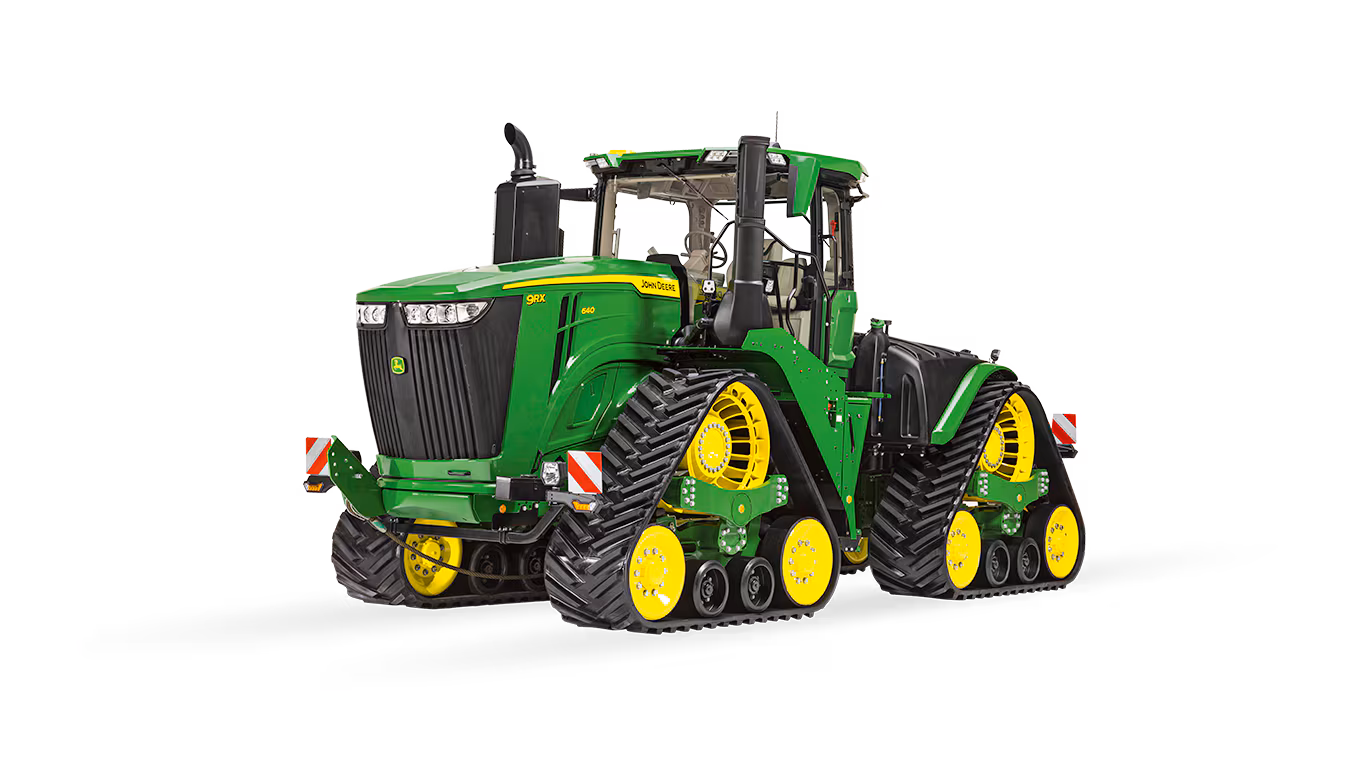

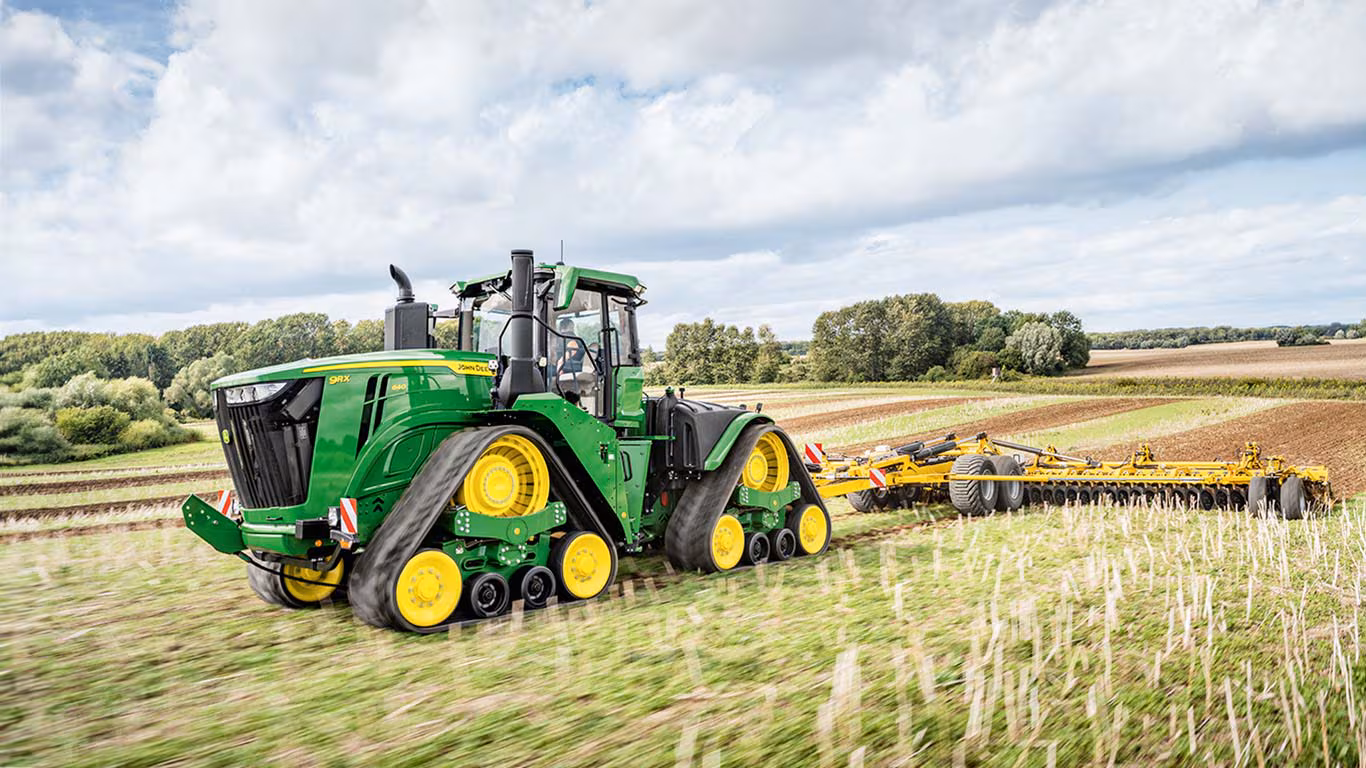

Equipped with the JD14 engine of up to 691 hp, the 9RX 490-640 tractors offer an outstanding baling capacity of up to 30,391 kg. The 119% larger footprint than the wheeled versions ensures superior traction under all load conditions and minimises berming at the headlands. They're agile on the road due to their narrow width, but also fast (up to 40 km/h).


Maximum engine power: 484 hp (356 kW) (ECE-R120)
13.6 litre 6-cylinder engine
20.9 t and wheelbase of 3.912 m
Optional HydraCushion™ front axle suspension and ActiveSeat™ II for premium driving comfort


Maximum engine power: 539 hp (396 kW) (ECE-R120)
13.6 litre 6-cylinder engine
20.9 t and wheelbase of 3.912 m
Optional HydraCushion™ front axle suspension and ActiveSeat™ II for premium driving comfort






Maximum engine power: 691 hp (508 kW) (ECE-R120)
13.6 litre 6-cylinder engine
21.2 tonnes and wheelbase of 3.912 m
Optional HydraCushion™ front axle suspension and ActiveSeat™ II for premium driving comfort


Maximum engine power: 539 hp (396 kW) (ECE-R120)
13.6 litre 6-cylinder engine
20.6 t and wheelbase of 2.947 m
Exclusive AirCushion™ suspension, which isolates the tractor from harsh bumps while travelling


Maximum engine power: 594 hp (437 kW) (ECE-R120)
13.6 litre 6-cylinder engine
20.6 t and wheelbase of 2.947 m
Exclusive AirCushion™ suspension, which isolates the tractor from harsh bumps while travelling


Maximum engine output: 649 hp (477 kW) (ECE-R120)
13.6 litre 6-cylinder engine
20.6 t and wheelbase of 2.947 m
Exclusive AirCushion™ suspension, which isolates the tractor from harsh bumps while travelling


Maximum engine power: 539 hp (396 kW) (ECE-R120)
13.6 litre 6-cylinder engine
24.6 tonnes (narrow version) and 4.154 m wheelbase
Large contact area of up to 66,890 cm² (ground pressure: 0.420 kg/cm²) with 914 mm wide tracks


Maximum engine power: 594 hp (437 kW) (ECE-R120)
13.6 litre 6-cylinder engine
24.6 tonnes (narrow version) and 4.154 m wheelbase
Large contact area of up to 66,890 cm² (ground pressure: 0.420 kg/cm²) with 914 mm wide tracks






Maximum engine power: 781 hp (582 kW) (ECE-R120)
JD18 18-litre 6-cylinder 18 litre engine
33.5 tonnes and 4,260 mm wheelbase
Minimum static ground pressure: 0.58 kg/cm²


Maximum engine power: 847 hp (632 kW) (ECE-R120)
JD18 18-litre 6-cylinder 18 litre engine
33.5 tonnes and 4,260 mm wheelbase
Minimum static ground pressure: 0.58 kg/cm²


Maximum engine power: 913 hp (681 kW) (ECE-R120)
JD18 18-litre 6-cylinder 18 litre engine
Dimensions: 33.5 tonnes and 4,260 mm wheelbase
Minimum static ground pressure: 0.58 kg/cm²


Data generated by X9 is automatically saved in the John Deere Operations Centre on myjohndeere.com. From there, you can use it for detailed planning, documentation and invoicing with accurate job breakdowns.


Learn more about the many applications and benefits of precision farming technology.
